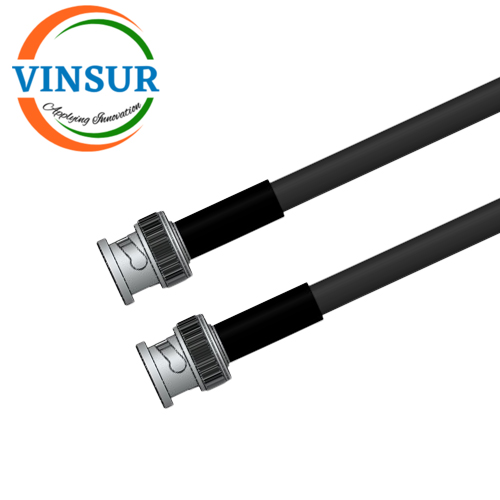

VSW250125-CA — BNC MALE STRAIGHT TO BNC MALE STRAIGHT FOR RG-59 CABLE ASSEMBLY LENGTH OF 1METER

  • RF Cable Assembly
  • BNC Cable Assembly
  • BNC to BNC Cable Assembly
  • FOR RG-59(Belden1505F)

Click Here to get Datasheet

Click Here to get Drawing

Description
SPECIFICATION
RF Series 1 BNC
Gender Plug (Male)
Orientation1 (body) Straight
Body 1 Brass, Nickel Plating
RF Series 2 BNC
Gender 2 Plug (Male)
Orientation 2 (body) Straight
Body 2 Brass, Nickel Plating
Frequency DC-4Ghz
Impedance 75 Ohms
VSWR ≤1.2
Cable Type RG-59(Belden1505F)
Cable Length 1 meter
CABLE SPECIFICATION
Cable Diameter 6.15mm
Max Frequency 6GHz
Impedance 75Ω
Temperature Rating 35°C to +75°C
