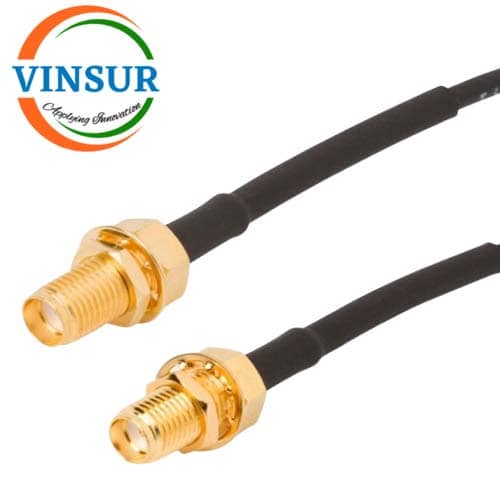

VSW250115-CA– SMA FEMALE STARIGHT BULKHEAD TO SMA FEMALE STARIGHT BULKHEAD RG-174 CABLE ASSEMBLY LENGTH OF 6INCH
- RF Cable Assembly
- SMA Cable Assembly
- SMA to SMA Cable Assembly
- RG-174 Cable
Description
| SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Jack(Female) |
| Orientation1 (body) | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | SMA |
| Gender 2 | Jack(Female) |
| Orientation 2 (body) | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Mounting Features | Bulkhead |
| Frequency | DC to 3Ghz |
| VSWR | ≤1.2 |
| CABLE SPECIFICATION | |
| Cable Type | RG174 |
| Cable Diameter | 2.7mm |
| Frequency | DC to 3Ghz |
| Impedance | 50 Ohms |
| Length | 6inch |
| Operating Temperature | -40°C to +75°C |
