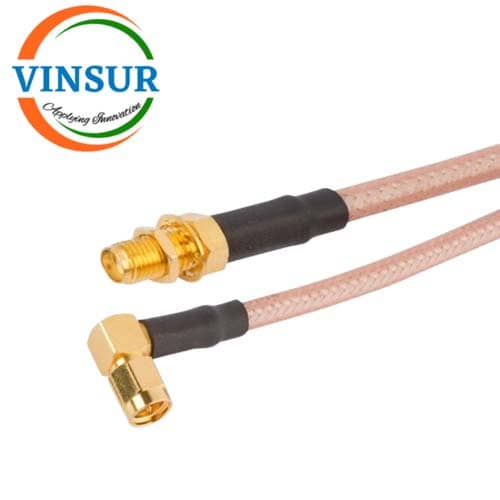

VSW250103-CA — SMA MALE RIGHT ANGLE TO SMA FEMALE STARIGHT BULKHEAD RG-142 CABLE ASSEMBLY LENGTH OF 6INCH
- RF Cable Assembly
- SMA Cable Assembly
- SMA to SMA Cable Assembly
- RG-142 Cable
SKU:
VSW250103-CA
Category: SMA TO SMA CABLE ASSEMBLIES
Tags: RF Cable Assembly, SMA Cable Assembly, SMA to SMA Cable Assembly
Description
SPECIFICATION | |
RF Series 1 | SMA |
Gender | Plug(Male) |
Orientation1 (body) | Right Angle |
Body Finish | Gold |
Body Material | Brass |
Contact Finish | Gold |
Contact Material | Brass |
RF Series 2 | SMA |
Gender 2 | Jack(Female) |
Orientation 2 (body) | Straight |
Body Finish | Gold |
Body Material | Brass |
Contact Finish | Gold |
Contact Material | Brass |
Mounting Features | Bulkhead |
Frequency | DC to 10Ghz |
VSWR | ≤1.2 |
CABLE SPECIFICATION | |
Cable Type | RG142 |
Cable Diameter | 4.95mm |
Frequency | DC to 10Ghz |
Impedance | 50 Ohms |
Length | 6inch |
Operating Temperature | -55/+200C |
