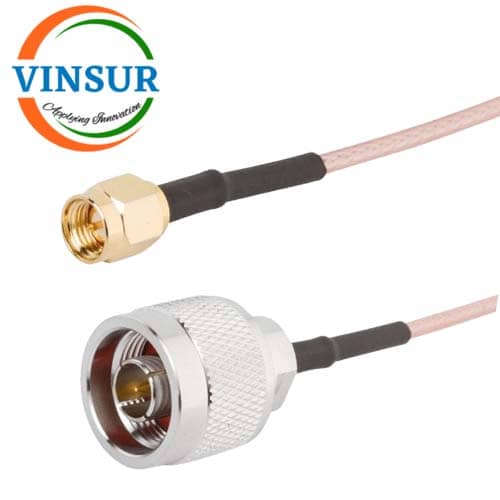

VSW250097-CA — N-TYPE MALE STRAIGHT TO SMA MALE STRAIGHT FOR RG-316 CABLE ASSEMBLY LENGTH OF 1METER
- RF Cable Assembly
- N-type Cable Assembly
- N-type to SMA Cable Assembly
- RG142 Cable
Description
| SPECIFICATION | |
| RF Series 1 | N |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | SMA |
| Gender 2 | Plug(Male) |
| Orientation 2 (body) | Straight |
| Body Plating | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Frequency | DC to 6GHz |
| Impedance | 50 Ohms |
| Cable Type | RG316 |
| VSWR | ≤1.2 |
| Temp (Max Degrees Celsius) | +85 |
| Temp (Min Degrees Celsius) | -40 |
| CABLE SPECIFICATION | |
| Cable Diameter | 2.49 ±0.1 |
| Cable Type | RG316 |
| Frequency Range | 6GHz |
