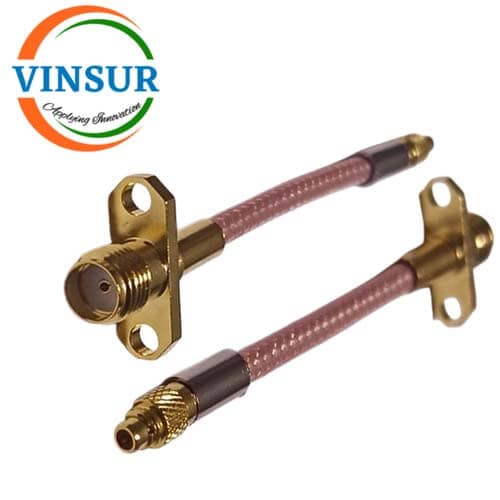

VSW250080-CA — SMA FEMALE STRAIGHT 2 HOLE FLANGE TO MMCX MALE STRAIGHT FOR RG316 CABLE ASSEMBLY LENGTH OF 75MM
- RF Cable Assembly
- MMCX Cable Assembly
- MMCX to SMA Cable Assemblies
- FOR RG316 Cable
Description
| SPECIFICATION | |
| RF Series 1 | MMCX |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium copper |
| RF Series 2 | SMA |
| Gender 2 | Jack(Female) |
| Orientation 2 (body) | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium copper |
| Mounting Feature | 2-Hole Flange Mount |
| Frequency | DC to 6Ghz |
| Impedance | 50 Ohms |
| Cable Type | For RG316 |
| Length | 75mm |
| Temp (Max Degrees Celsius) | -65°C |
| Temp (Min Degrees Celsius) | +165°C |
