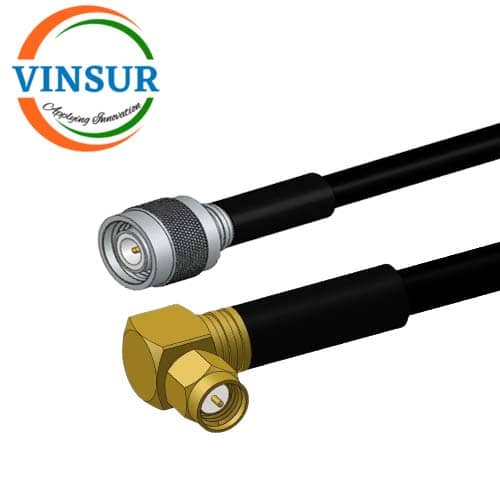

VSW250077-CA – 50 OHMS , SMA MALE RIGHT ANGLE TO TNC MALE STRAIGHT FOR VINSUR200 CABLE ASSEMBLY LENGTH OF 450MM
- RF Cable Assembly
- SMA Cable Assembly
- SMA to TNC Cable Assembly
- VINSURWAVES-200 Cable
Description
| SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Plug (Male) |
| Orientation1 (body) | Right Angle |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Cupper |
| RF Series 2 | TNC |
| Gender 2 | Plug (Male) |
| Orientation 2 (body) | Straight |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Cupper |
| Frequency | DC-8Ghz |
| Impedance | 50 Ohms |
| VSWR | ≤1.2 |
| Length | 450mm |
| Temp (Max Degrees Celsius) | +85 |
| Temp (Min Degrees Celsius) | -40 |
| CABLE SPECIFICATION | |
| Cable Type | VINSURWAVES-200 |
| Cable Diameter | 4.95mm |
| Frequency Range | 8.5GHz |
