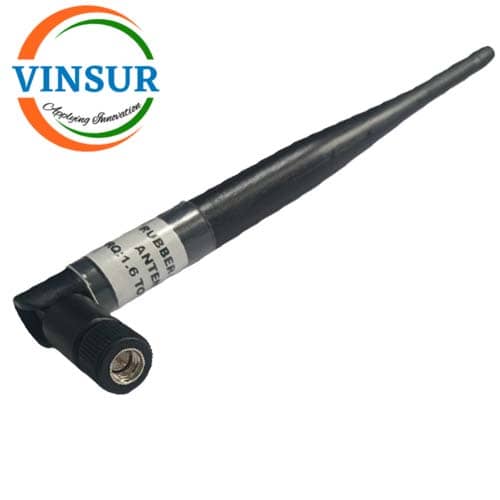

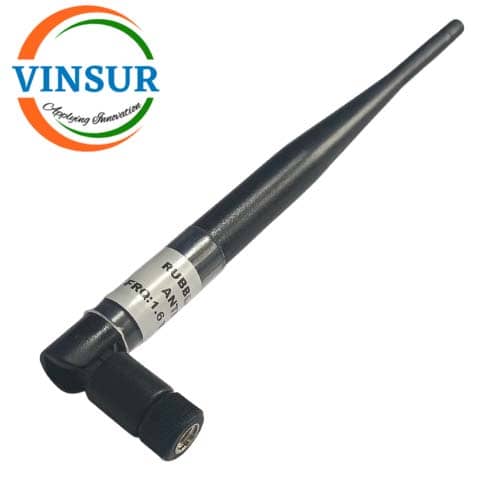

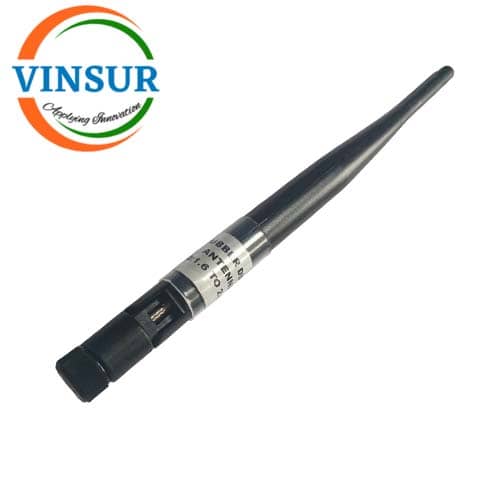

VSW250064-AN — 1.6 TO 2.6GHZ RUBBER DUCK ANTENNA

SKU: VSW250064-AN Category: Rubber Duck Antenna Tags: RF Antenna, Rubber duck Antenna

Description

ELECTRICAL SPECIFICATION
Frequency Range	1.6-2.6Ghz
Gain	5 dBi
VSWR (Max.)	≤ 2
Input Impedance	50 Ω
Polarization	Vertical
Horizontal Beam Width	360°
Vertical Beam Width	25°
Power Handling	10 W
Connector	SMA (Male)
MECHANICAL SPECIFICATION
Dimensions	180×Ø40mm
Housing	ABS Black
Weight	< 100 grams
ENVIRONMENTAL SPECIFICATION
Operating Temperature	-30° to +60°C
Humidity	5 – 95%
