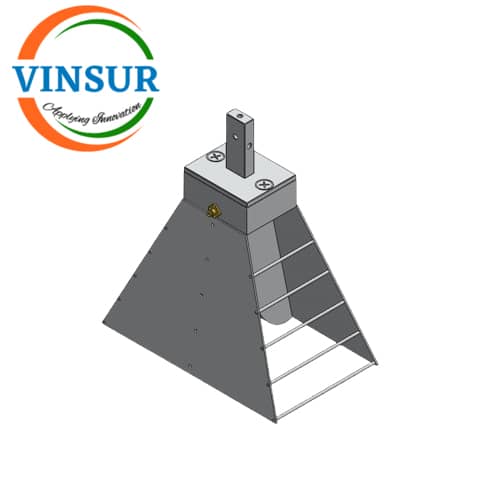

VSW250048-AN — Horn Antenna 1-18GHz Gain-10dBi

  • RF Antenna
  • Horn Antenna
  • 1-18GHz
  • 10dBi Gain

Click Here to get Datasheet





SKU: VSW250048-AN Category: Tags: , , ,
Description
SPECIFICATIONS
Frequency Range 1-18GHz
Gain 10dBi
VSWR ≤1.5
Polarization Linear
Cross polarization 50 dB
Connector N-Female
Average Power 300 W
Material Aluminium
Size(L×W×H) 240×141×2725 ±5mm
Weight 2 Kg
