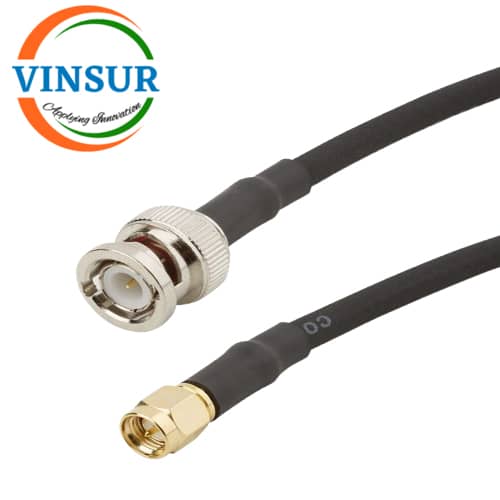

VSW250047-CA — BNC MALE STRAIGHT TO SMA MALE STRAIGHT FOR RG-58 CABLE ASSEMBLY LENGTH OF 12INCH
- RF Cable Assembly
- BNC Cable Assembly
- BNC to SMA Cable Assembly
- FOR RG58
Description
| SPECIFICATION | |
| RF Series 1 | BNC |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| Body Material | Nickel |
| Body Finish | Brass |
| Contact Finish | Gold |
| RF Series 2 | SMA |
| Gender 2 | Plug (Male) |
| Orientation 2 (body) | Straight |
| Body Material | Gold |
| Body Finish | Brass |
| Contact Finish | Gold |
| Frequency | DC to 4Ghz |
| Impedance | 50 Ohms |
| Cable Type | For RG58 |
| VSWR | ≤1.2 |
| Length | 12Inch |
| Temp (Max Degrees Celsius) | +85 |
| Temp (Min Degrees Celsius) | -40 |
