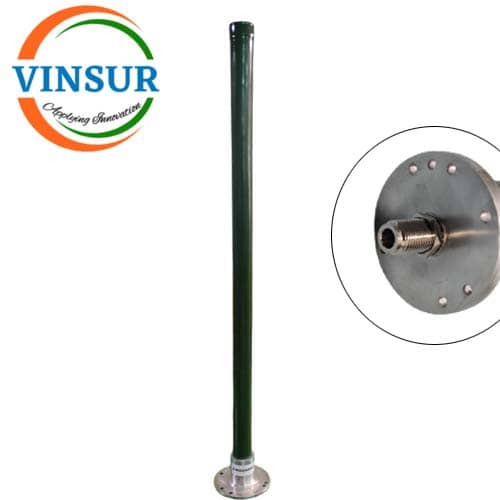

VSW250043-AN – OMIDIECTIONAL ANTENNA DUAL BAND 2.4 to 5GHz (13Dbi)
- RF Antenna
- Omni Directional Antenna
- 2.4 – 5GHz
- 13dBi Gain
Description
| ELECTRICAL SPECIFICATION | |
| Frequency | 2400 – 5000 GHz |
| Gain | Up to 13dBi |
| VSWR | 1.5:1 Max |
| H Plane BW | 360° |
| E Plane BW | 28°±2 |
| Polarization | Vertical |
| Max. Power Input | 100W |
| Impedance | 50 Ω |
| Lightning Protection | DC Grounded |
| Connector Termination | N(Female) |
| Radom Material | Fiberglass |
| Mounting Hardware | Vehicle Mounting |
| MECHANICAL SPECIFICATION | |
| Dimension (mm) | Ø25 |
| Length (mm) | 850mm |
| Gross Weight | 300g |
| Operating Temperature | 20℃ to+70℃ |
| Rated Wind Velocity | 100km/hr |
