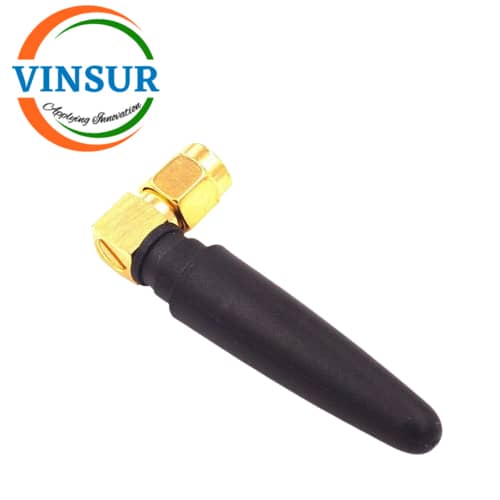

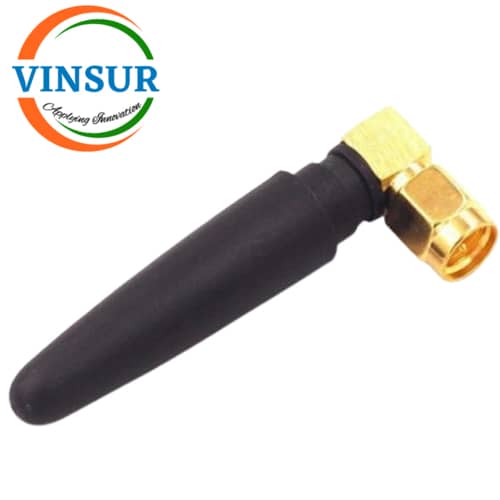

VSW250037-AN — Rubber Duck Antenna 824-960MHz And 1710-1980MHz 2dBi Gain
- RF Antenna
- Rubber Duck Antenna
- 824-960MHz And 1710-1980MHz
- 2dBi Gain
Description
| ELECTRICAL SPECIFICATION | |
| Frequency | 824-960 MHz & 1710-1980 MHz |
| Gain | 1.2 / 2 dBi |
| Impendence | 50Ω |
| Connector | SMA |
| Gender | Plug(Male) |
| Orientation | Right Angle |
| VSWR (Max.) | < 2.0 |
| Polarization | Vertical |
| HPBW | H: 3600; V: 400 |
| Power Handling | 10 W |
| Humidity | 5-75% |
| Dimension | 50 x 10(mm) |
| Weight | 10 grams |
| Housing | Plastic / Black |
| Operating Temperature | -30° to +60°C |
