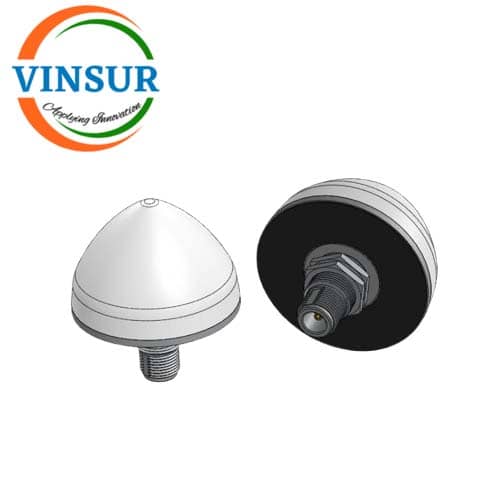

VSW250034-AN — High Gain GPS-L1/GLONASS-G1 Antenna

MECHANICALS
Size	66.5 mm (dia.) x 21 mm (h.)
Weight	150 g
Radom	LEXAN™ EXL9330, Base: Zamac Metal
Mount	Through-hole (100 mm ground plane provided)
Available Connectors	Please refer to ordering guide
Size	66.5 mm (dia.) x 21 mm (h.)
Weight	150 g

ENVIRONMENTAL
Operating Temperature	-40 °C to +85 °C
Storage Temperature	-55 °C to +95 °C
Vibration	MIL-STD-810-E – Test Method 514.5
Shock	MIL-STD-810-G – Test Method 516.6
Salt Fog	MIL-STD-810-F – Test Method 509.5
Other Tests	Hail, Humidity, Dust, Rain, Sand, Solar
IP Rating	IP69K
Compliance	IPC-A-610, FCC, CE RED, RoHS, REACH
