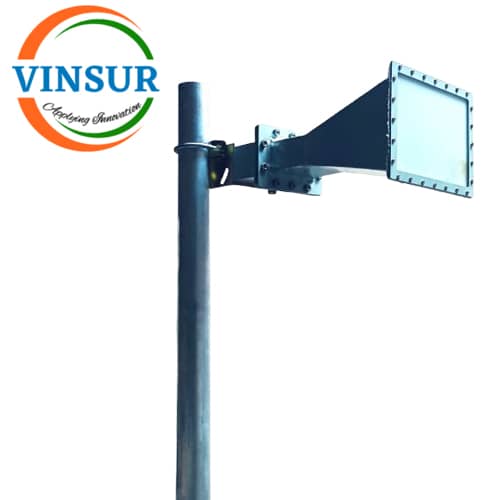

VSW250033-AN — Horn Antenna 16-18GHz Gain-20dBi

  • RF Antenna
  • Horn Antenna
  • 16-18GHz
  • 20dBi Gain

Click Here to get Datasheet



SKU: VSW250033-AN Category: Tags: , ,
Description
SPECIFICATIONS
Frequency Range 16-18GHz
Gain 20dBi
VSWR ≤1.25
Polarization Linear
Cross polarization 50 dB
Connector N-Female
Average Power 300 W
Material Aluminium
3dbi beam width H-plane 18°
3dbi beam width E-Plane: 17°
Size(L×W×H) 240×141×2725 ±5mm
Weight 2 Kg
