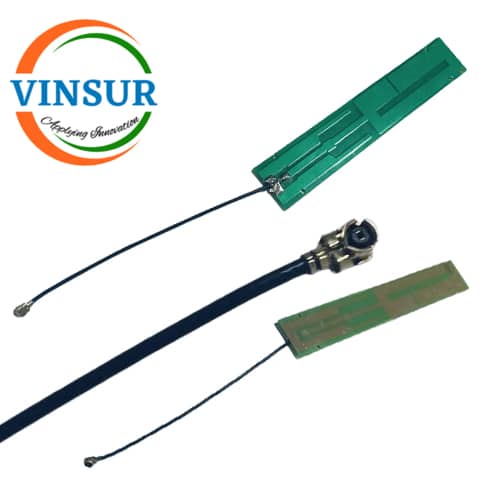

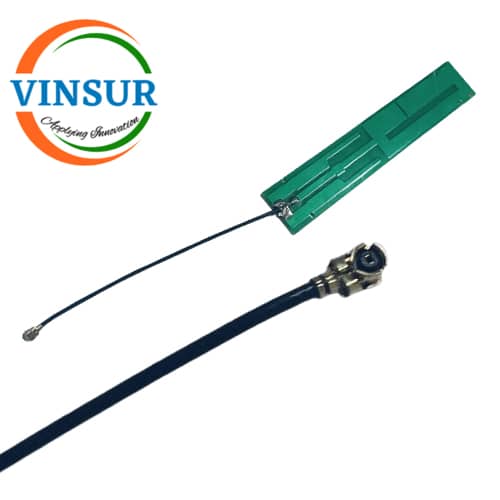

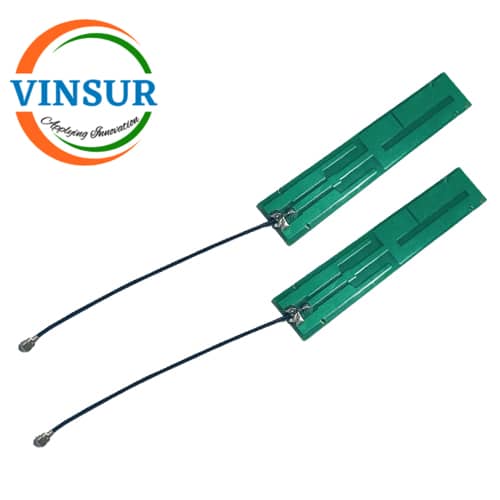

VSW250032-AN — PCB with UFL Cable Antenna (700-960MHz and 1710-2700MHz)
- RF Antenna
- Omni Directional Antenna
- 700-960MHz 2.5dBi Gain
- 1710-2700MHz 5.5dBi Gain
Description
| ELECTRICAL SPECIFICATIONS | ||
| Frequency | 700-960 MHz | 1710-2700MHz |
| Gain | 2.5 dBi | 5.5 dBi |
| VSWR | ≤2.5 | ≤2.5 |
| Impedance | 50Ω | 50Ω |
| Maximum input power | 10W | 10W |
| Polarization | Linear | Linear |
| Efficiency | 56% | 64% |
| MECHANICAL SPECIFICATIONS | ||
| Cable Type | 1.13 Cable | |
| Connector Type | MHF1 Plug | |
| Dimension | 100×15mm | |
| ENVIRONMENTAL SPECIFICATIONS | ||
| Operation Temperature | -40°C to +85°C | |
| Storage Temperature | -40°C to +85°C | |
