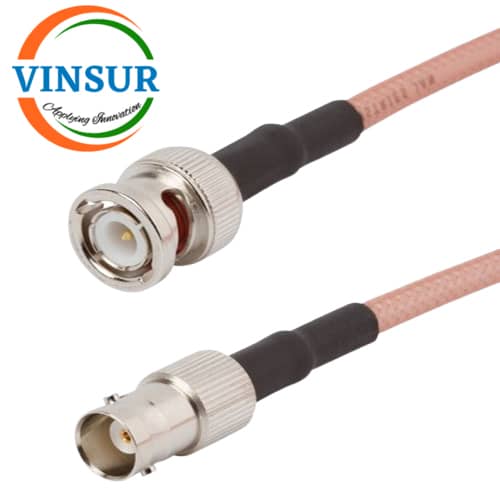

VSW250030-CA – BNC MALE STRAIGHT TO BNC FEMALE RIGHT ANGLE FOR RG-316 CABLE ASSEMBLY
- RF Cable Assembly
- BNC Cable Assembly
- BNC to BNC Cable Assembly
- BNC Male to BNC Female
- FOR RG316
Description
| SPECIFICATION | |
| RF Series 1 | BNC |
| Gender | Plug (Male) |
| Orientation1 (body) | Straight |
| Body 1 | Brass, Nickel Plating |
| RF Series 2 | BNC |
| Gender 2 | Jack (Female) |
| Orientation 2 (body) | Straight |
| Body 2 | Brass, Nickel Plating |
| Frequency | DC-4Ghz |
| Impedance | 50 Ohms |
| VSWR | ≤1.2 |
| Cable Type | RG316 |
| Temperature Rating | -40°C ~ +85°C |
| CABLE SPECIFICATION | |
| Cable Diameter | 2.49 ±0.1 |
| Max Frequency | 6GHz |
| Impedance | 50Ω |
