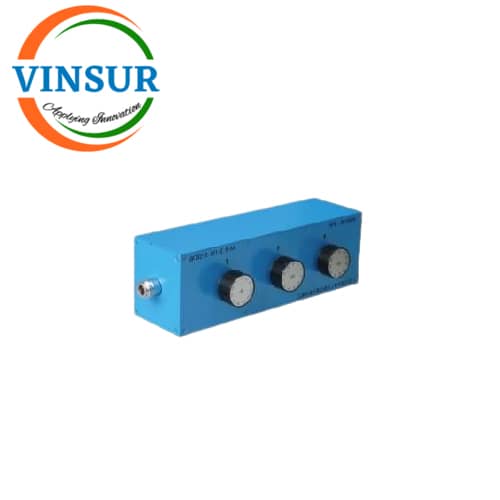

VSW250030-ATT — Variable Attenuator 2W DC-3GHz 110dB

SKU: VSW250030-ATT Category: VARIABLE ATTENUATORS Tags: RF Attenuator, RF Variable Attenuator

Description

ELECTRICAL & MECHANICAL SPECIFICATIONS
Frequency Range	DC-3GHz
Attenuation step	0-110dB in 1dB steps
Attenuation Accuracy(dB)	±0.5dB (≤10dB) ± 0.8dB or 3% (11-69dB) ±6% (70-99dB) ±7% (100-121dB)
VSWR	1.75
Insertion loss(dB)	≤2.5
Power rating(W)	2W
Peak Power(W)	100W(5μs pulse width, 2% duty cycle)
Impedance	50 Ω
Temperature range	-20°C ～ +80°C
Size	250.5×87×79mm
Weight	About 1630g
