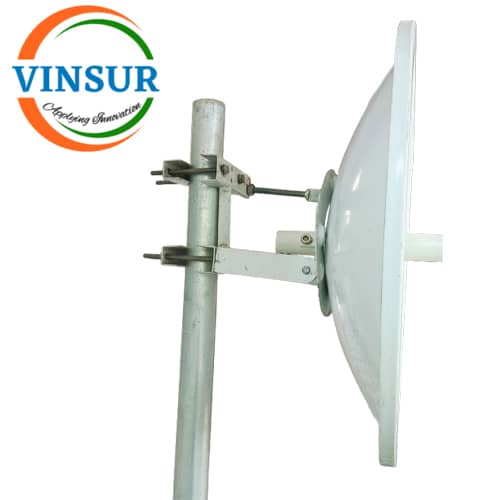

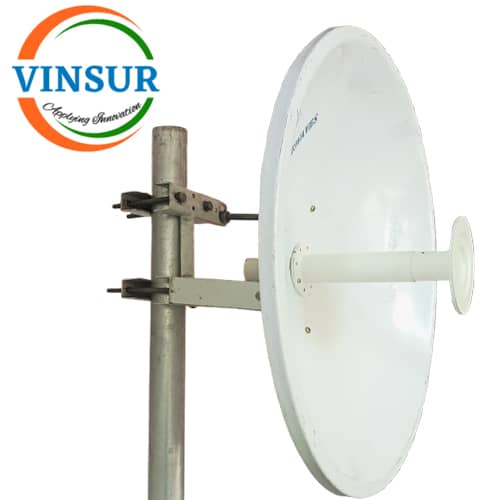

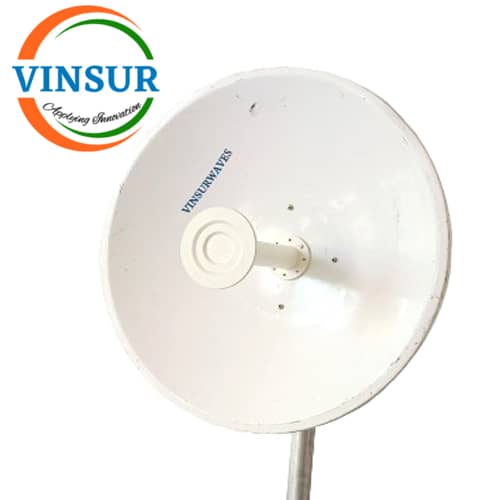

VSW250016-AN — Dish Antenna 4.9-6.4GHz 30dBi MIMO
- RF Antenna
- Dish Antenna
- 4.9-6.4GHz
- 30dBi
- 2x N Female Connector
Description
| ELECTRICAL SPECIFICATION | |
| Frequency Range | 4.9-6.4GHz |
| Gain | 30 dBi |
| F/B Ratio (dB) | ≥35 |
| Polarization | Horizontal + Vertical |
| Horizontal Beam width (°) | 6 |
| Vertical Beam width (°) | 5 |
| VSWR | ≤2.0 |
| Isolation (dB) | ≥30 |
| Nominal Impedance (Ω) | 50 |
| Maximum Power (W) | 100 |
| Lightning Protection | DC Ground |
| MECHANICAL SPECIFICATIONS | |
| Connector | 2xN-Female |
| Mounting Mast Size (mm) | Φ40-60 |
| Dimensions (cm) | Φ60 |
| Weight (kg) | 6.5 |
| Dish | 2 Foot |
| Operating Temperature (℃) | -40～+60 |
