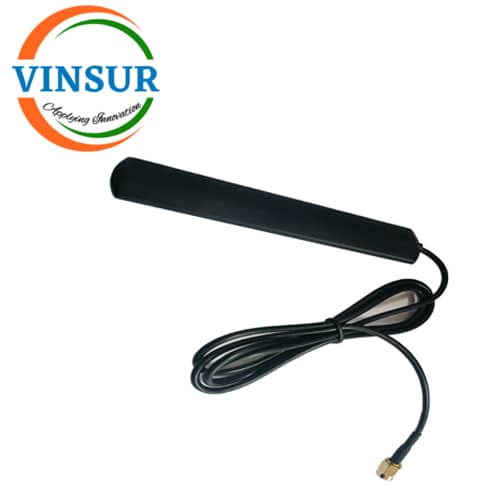

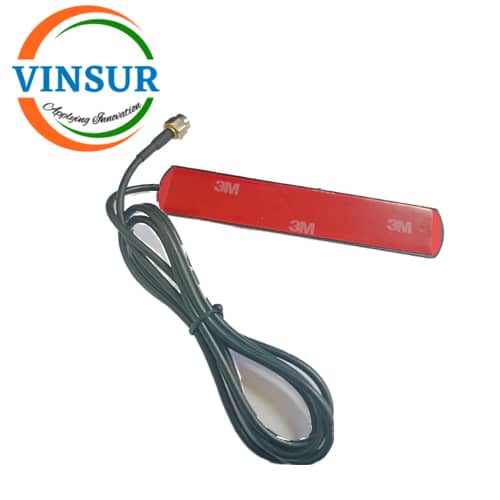

VSW250010-AN — GPS Antenna for Bluetooth WiFi 2.4 to 2.5GHZ SMA Male
- RF Antenna
- GPS Antenna
- 2.4 to 2.5GHz
- Cable Type RG174
- SMA Male
Description
| SPECIFICATION | |
| Freq.Range | 2.4 to 2.5GHz |
| VSWR | ≤1.5 |
| Antenna Gain | 5dBi |
| Impedance | 50 Ohm |
| Polarization | Vertical |
| HPBW / horizontal | 360 degrees (horiz. pol. beam width) |
| HPBW / vertical | 25 degrees (vertical pol. beam width) |
| Max Power handling | 50W |
| Antenna Cable | 174 coax cable |
| Cable Length | 30cm |
| Antenna Connector | SMA-male |
| Temperature | -40°C ~+ 60°C |
| Radom colour | Black |
| Radom material | PC+ABS |
| Dimensions | 22×115×5(mm) |
