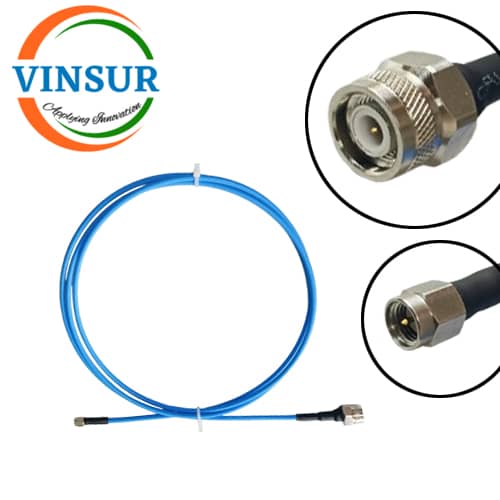

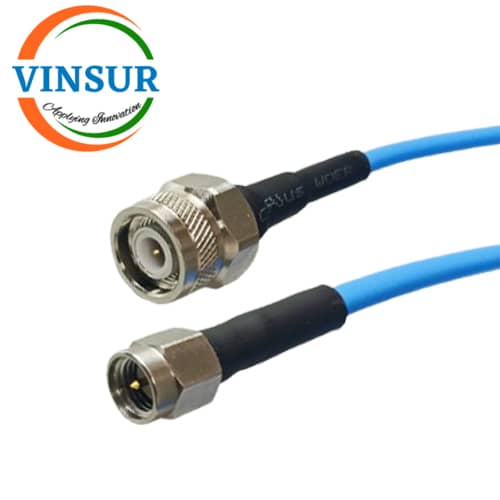

VSW250008-CA – RF CABLE ASSEMBLY – 50 OHMS , SMA MALE, STRAIGHT TO TNC MALE, STRAIGHT FOR RG402 CABLE OF LENGTH OF 2meter
- RF Cable Assembly
- SMA Cable Assembly
- SMA to TNC Cable Assembly
- RG402 Cable
Description
| SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | TNC |
| Gender 2 | Plug (Male) |
| Orientation 2 (body) | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Frequency | 8.5GHz |
| Impedance | 50 Ohms |
| Cable Type | RG402 |
| Insertion Loss | 1.5 MAX dB |
| VSWR | ≤1.15:1 |
| Length | 2meter |
| Temperature rating | -40 / +165°C |
| Temp (Min Degrees Celsius) | -40 |
| CABLE SPECIFICATION | |
| Cable Diameter | 4.10 mm |
| Weight | 52 kg/km |
| Frequency Range | 18GHz |
| Input Power (CW), Max | 130W @18Ghz |
