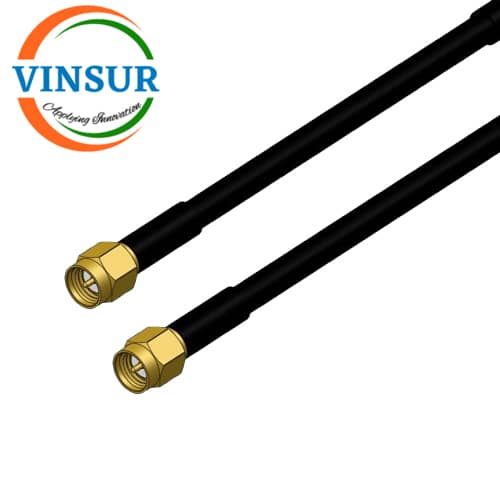

VSW250004-CA — SMA MALE TO SMA MALE STRAIGHT FOR VINSUR-200 ULTRA FLEX LENGTH OF 1METER CABLE ASSEMBLY
- RF Cable Assembly
- SMA Cable Assembly
- SMA to SMA Cable Assembly
- VINSUR-200 -UF Cable
Description
| SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Plug (Male) |
| Orientation1 (body) | Straight |
| Body 1 | Brass, Gold Plating |
| RF Series 2 | SMA |
| Gender 2 | Plug (Male) |
| Orientation 2 (body) | Straight |
| Body 2 | Brass, Gold Plating |
| Frequency | DC-2Ghz |
| Impedance | 50 Ohms |
| VSWR | ≤1.25 |
| Cable Type | Vinsurwaves-200-UF |
| Cable Length | 1 Meter |
| Temperature Rating | -40°C ~ +85°C |
| CABLE SPECIFICATION | |
| Cable Diameter | 4.95 mm |
| Frequency | 5.8 GHz |
| Weight | 0.03kg/m |
| Impedance | 50Ω |
