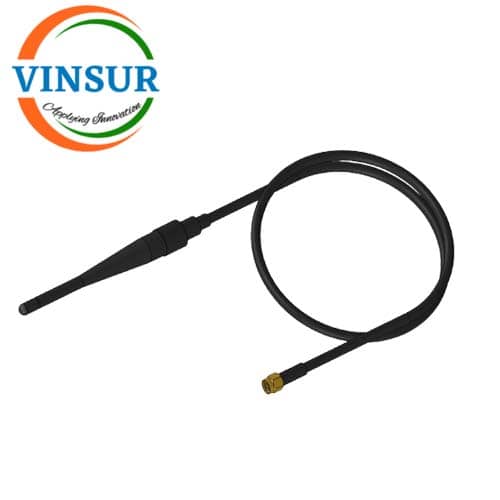

VSW-ZGB-AN-2dBi-2.5 — ZigBee antenna (2300-2600Mhz)
- RF Antenna
- GSM Antenna
- ZigBee antenna
- 2300-2600MHz
- SMA Male
Description
| ELECTRICAL SPECIFICATION | |
| Impedance | 50 ohm |
| Frequency (MHz) | 2300-2600 |
| Band (MHz) | 2450MHz |
| Return Loss (dB) | ~-17.2 |
| VSWR | ≤2.0 |
| Efficiency (%) | ~83.9 |
| Peak Gain (dBi) | ~2.7 |
| Average Gain (dB) | ~-0.8 |
| Polarization | Linear |
| Radiation Pattern | Omni-Directional |
| Max. Input Power (W) | 25 |
| Connector Type | SMA-Male |
| Cable Type | LMR-195 |
| Standards | Wi-Fi, BT, ZigBee, ISM |
| MECHANICAL AND ENVIRONMENTAL SPECIFICATIONS | |
| Mounting Type | Connector Mount |
| Antenna Height | 11cm(112.00) |
| Length | 1 meters |
| Radom | UV Protected ABS Granules |
| Radom colour | Black |
| Operating Temperature (C) | -40 to +85 |
| Storage Temperature (C) | -40 to +85 |
| Substance Compliance | RoHS |
