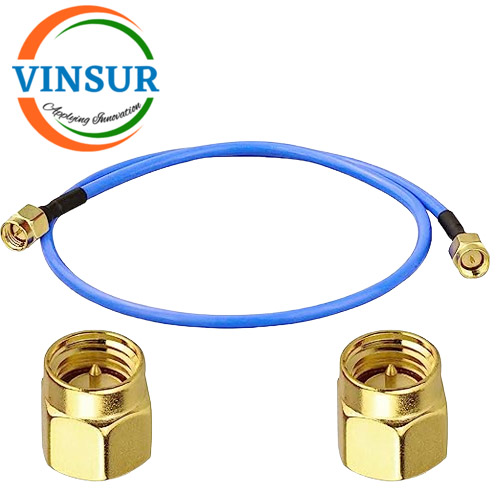

VSW-TCA-SSMA1-18G-L1 SMA MALE TO SMA MALE TESTING CABLE ASSEMBLY 1MTR T-FLEX

SKU: VSW-TCA-SSMA1-18G-L1 Category: SMA to SMA Cable Assembly Tags: Rf Testing Cable Assembly, SMA to SMA Cable Assemblies

Description

SPECIFICATION
RF Series 1	SMA
Gender	Plug(Male)
Orientation1 (body)	Straight
RF Series 2	SMA
Gender 2	Plug(Male)
Orientation 2 (body)	Straight
Body Finish	Gold
Body Material	Brass
Contact Finish	Gold
Contact Material	Beryllium Copper
Frequency	DC to 26.5Ghz
Impedance	50 Ohms
Cable	Ultra low loss phase & amplitude stable
Cable Type	RG402 T-flex
VSWR	≤ 1.5:1
Length	1Meter
Cycling time	500
