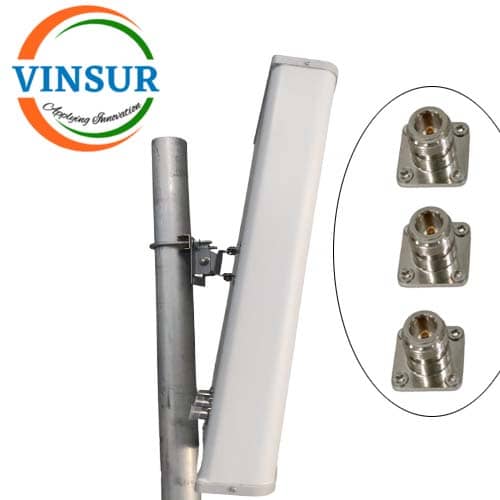

VSW-TBS-ANT-1575/2.4/5.8 — TRI BAND SECTORIAL DIRECTIONAL ANTENNA(1575-2400-5800MHZ)

SKU: VSW-DBS-ANT-433/915-1 Category: SECTOR ANTENNA Tags: RF Antenna, Sector Antenna

Description

ELECTRICAL SPECIFICATION
Frequency Band	1575 MHz	2400 MHz	5800 MHz
Gain	9-10 dBi	9-10 dBi	9-10 dBi
Impedance	50Ω	50 Ω	50 Ω
No. of Ports	1	1	1
Polarization	±45°	±45°	H/V
Horizontal HPBW	65°±5	65°±5	65°±5
Vertical HPBW	12°±2	8°±1	7°±3
Electrical Down tilt	0°	0°	0°
Upper Side Lobe Suppression (Peak to 20°)	15dB	15dB	15dB
Front-to-Back Ratio @ 180°±30°	30dB	30 dB	30 dB
Cross-polarization Ratio over HPBW	20 dB	20 dB	20 dB
VSWR	1.3	1.3	1.3
Return Loss	-16dB	-16dB	-16dB
Max. Input Power per Port	100W	100 W	100 W
