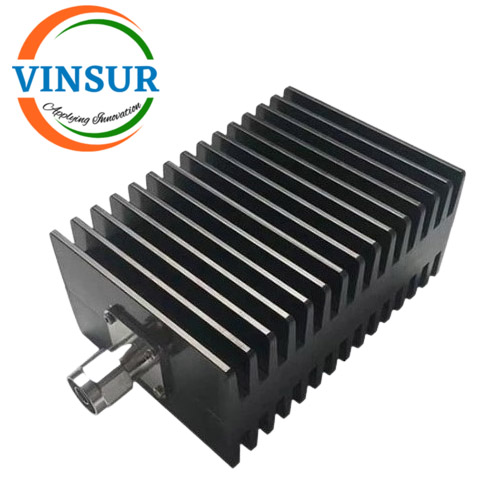

VSW-T100-3-NM -- 100 WATT RF TERMINATION LOAD - Image 1
Click to enlarge

VSW-T100-3-NM — 100 WATT RF TERMINATION LOAD

  • RF Passive Device
  • RF Termination Load
  • DC-3GHZ
  • N MALE

Click Here to get Datasheet

SKU: VSW-T100-3-NM Category: Tags: , ,
Description
ELECTRICAL SPECIFICATION
Freq DC-3GHz
VSWR ≤1.25
Power(W) 100 (average)
Impedance 50 ohm
Connector N-male
Colour Black
Operating Position Vertical
Dimensions 6.8in×6.4in×2.6in
Peak Power 2.5 KW Max or Better
Temperature Range -40 to +40 degree C
Weight 3.6Ibs(1.6kg)
