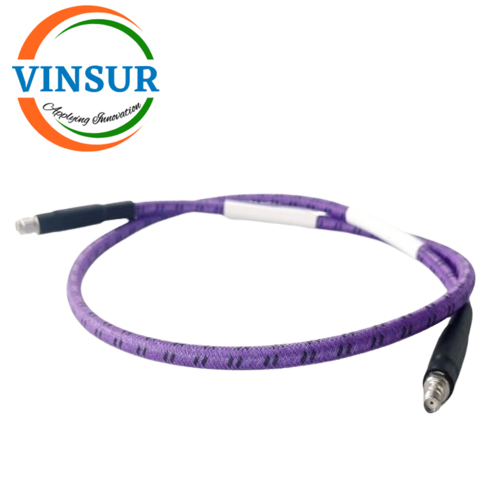

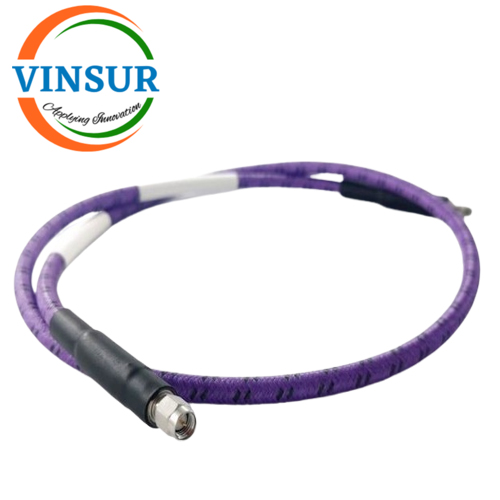

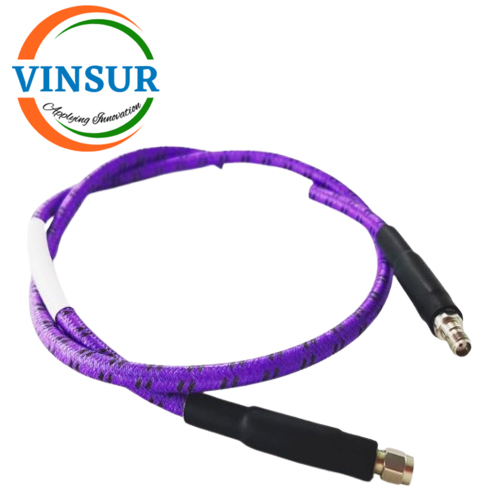

VSW-SMAM-SMAF-TCA18G-1.5M SMA MALE, STRAIGHT TO SMA FEMALE, STRAIGHT 1.5METER TESTING CABLE ASSEMBLY
- RF Testing Cable Assembly
- SMA Testing Cable Assembly
- SMA to SMA Testing Cable Assembly
- 50Ω
Description
| SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| RF Series 2 | SMA |
| Gender 2 | Jack (Female) |
| Orientation 2 (body) | Straight |
| Body Finish | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Frequency | DC to 18Ghz |
| Impedance | 50 Ohms |
| Cable Type | Armoured |
| VSWR | ≤ 1.5 Max |
| Length | 1.5Meter |
| Attenuation (25℃) | 1.6 dB/m |
