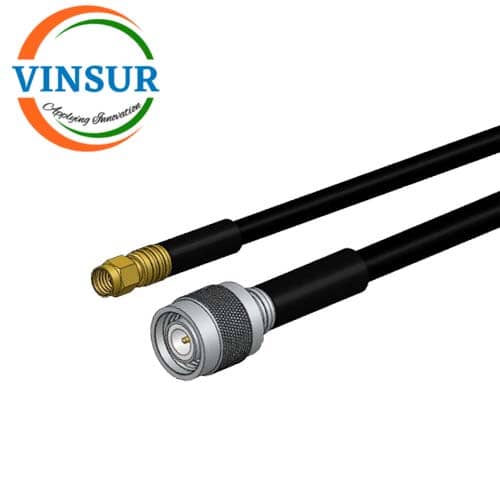

VSW-SMA-TNC-240-CA-9M — RF CABLE ASSEMBLY – 50 OHMS , SMA MALE, STRAIGHT TO TNC MALE, STRAIGHT FOR VINSURWAVES-240-FR CABLE
- RF Cable Assembly
- SMA Cable Assembly
- SMA to TNC Cable Assembly
- VINSURWAVES-240-FR Cable
Description
| SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| Body Plating | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | TNC |
| Gender 2 | Plug (Male) |
| Orientation 2 (body) | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Frequency | 450MHz |
| Impedance | 50 Ohms |
| Cable Type | VINSURWAVES-240-FR |
| Insertion Loss | 1.5 MAX dB |
| VSWR | ≤1.15:1 |
| Length | 9meter |
| Temp (Max Degrees Celsius) | +85 |
| Temp (Min Degrees Celsius) | -40 |
| CABLE SPECIFICATION | |
| Cable Diameter | 0.43 in [10.92 mm} |
| Weight | 0.1725 lbs/ft [0.26 kg/m] |
| Frequency Range | 10GHz |
| Input Power (CW), Max | 350W @10Ghz |
