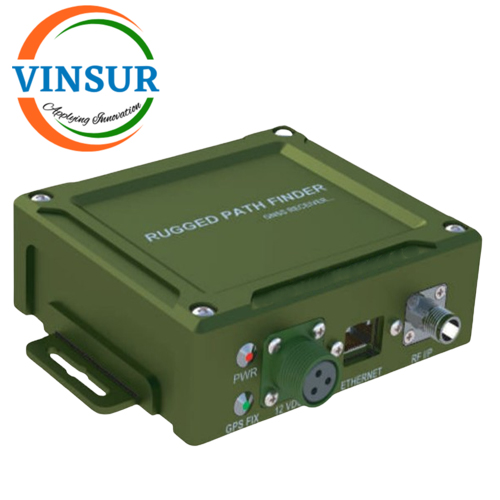

VSW-RGNSS-R3 — RUGGED PATH FINDER GNSS RECEIVER
Features :
- Multi GNSS receiver supporting GPS/GLONASS/Galileo/ BeiDou/IRNSS/QZSS
- 10/100/1000 Ethernet Interface
- Low power consumption
- Concurrent GNSS Engine
Description
| MECHANICAL SPECIFICATIONS | |
| Dimensions | 125 X 110 X 42mm |
| Weight | <700 gms |
| Mounting Method | Flange Mount |
| Cable Length | 5m Standard(15m & 25m special order) |
| Cable Type | Shielded CAT6 PTFE Cable |
| Connector | RJ45 Standard (Customized Connectors in request) |
| Enclosure | Industrial grade, weatherproof IP68K |
| ELECTRICAL SPECIFICATION | |
| Voltages | 9-36V DC Continuous |
| Current | 120 mA during acquisition 80 mA operating, Standby mode < 1mA |
| ENVIRONMENTAL SPECIFICATION | |
| Operating Temperature | -40C to +85C |
| Storage Temperature. | -45C to +85C |
| Weatherproof | IP69K |
| Max .Altitude | < 18,000 m |
| Max. Velocity | < 500 m/s |
