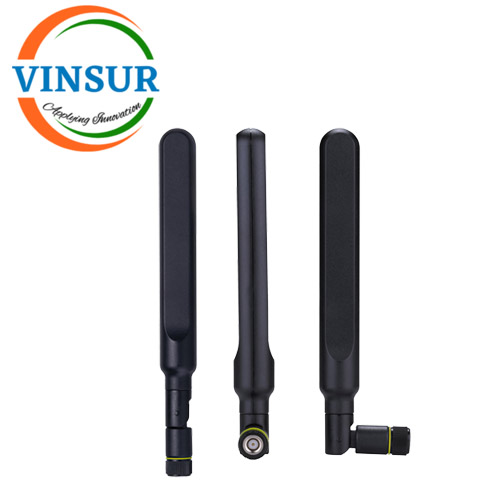

VSW-RDA-2.4-5.8–2.4 TO 5.8G Rubber Duck Antenna

SKU: VSW-RDA-2.4-5.8 Category: Rubber Duck Antenna Tags: RF Antenna, Rubber duck Antenna

Description

ELECTRICAL SPECIFICATION
Frequency Range	2.4 GHz~2.5GHz/5GHz~5.8GHz
Gain	5 dBi
VSWR (Max.)	≤ 1.9
Input Impedance	50Ω
Polarization	Vertical
Maximum input power	50W
MECHANICAL SPECIFICATION
Length (mm)	Φ14*161mm
Connector	SMA or Customized
ENVIRONMENTAL SPECIFICATION
Operating Temperature	-40° to +80°C
Storing temperature	-20°C ~ +60°C
Radiation	Omni-directional
Color	Black / White
