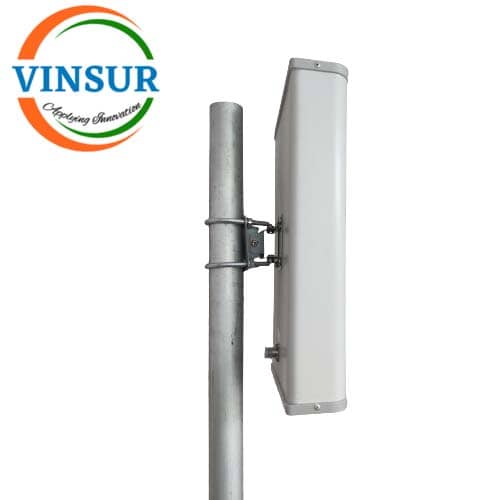

VSW-PA-12Dbi-450MHz — Panel Antenna(400 -450MHz 12DBi )

SKU: VSW-PA-12Dbi-450MHz Category: Outdoor Directional Panel Antenna Tags: 380 -430MHz, Gain: 12DBi, Panel Antenna, RF Antenna

Description

ELECTRICAL SPECIFICATIONS
Frequency range (MHz)	400-450
Polarization	±45°
Gain (dBi)	12
Electrical Down tilt (°)	0
HBW (°)	85±3
VBW (°)	38±3
Front-to-back ratio (dB)	≥15
Cross-polar discrimination (dB)	≥15（±60°≥10）
Isolation (dB)	≥22
Impedance (Ω)	50
VSWR	≤1.5:1
Maximum power (W)	200
Lighting protection	DC Grounding
MECHANICAL SPECIFICATIONS
Connector	N-Female
Connector position	Bottom
Height/width/depth (mm)	40027085
Weight (Kg)	10
Radom material	ABS
Radom color	Gray
Operating temperature (℃)	-40℃ -60℃
Rated wind velocity (m/s)	60
Suitable pole diameter (mm)	Φ50
