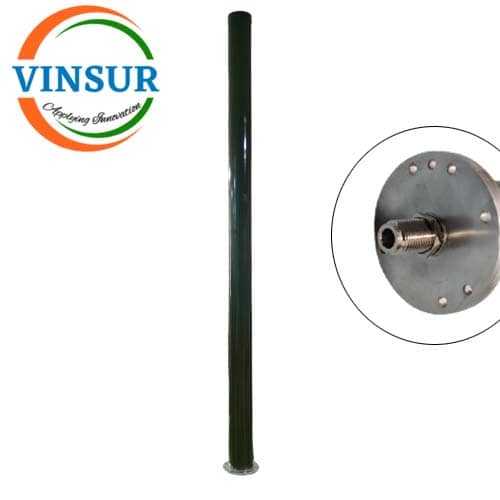

VSW-OMD-ANT-433–Omni directional Antenna (433Mhz 6-7dBi)
- RF Antenna
- Omni Directional Antenna
- 433Mhz
- 6-7dBi Gain
Description
| ELECTRICAL SPECIFICATION | |
| Frequency Range | 433MHz |
| Gain | 6-7dBi |
| Horizontal Beam width | 360° |
| Vertical Beam width | 12° |
| V.S.W.R | ≤1.5 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ω |
| Connector | N Female |
| Antenna Radom Material | Fiberglass |
| Mount Way | Vehicle Mounting |
| MECHANICAL SPECIFICATION | |
| Antenna Dimension | Φ50x1300mm |
| Weight | 895g |
| Operating Temperature | 40℃ to+70℃ |
| Rated Wind Velocity | 100km/hr |
