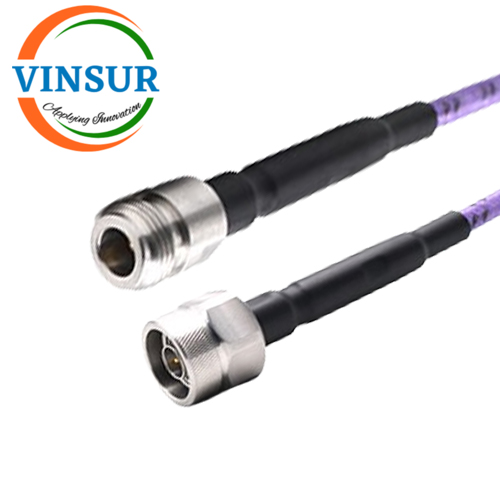

VSW-NM-NF-TCA18G-1.5M N MALE, STRAIGHT TO N FEMALE, STRAIGHT 1.5METER TESTING CABLE ASSEMBLY
- RF Testing Cable Assembly
- N-Type Testing Cable Assembly
- N to N Cable Assembly
- 50Ω
Description
| SPECIFICATION | |
| RF Series 1 | N |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| RF Series 2 | N |
| Gender 2 | Jack (Female) |
| Orientation 2 (body) | Straight |
| Body Finish | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Frequency | DC to 18Ghz |
| Impedance | 50 Ohms |
| Cable Type | Armored |
| VSWR | ≤ 1.5 Max |
| Length | 1.5Meter |
| Attenuation (25℃) | 1.6 dB/m |
