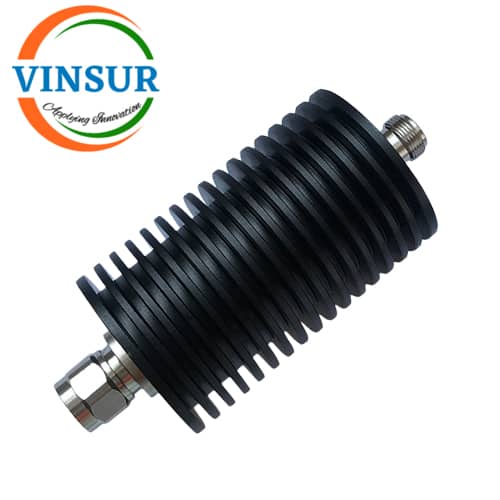

VSW-N-MF-30dB-CAT — RF Attenuator – N Male to N Female 30dB DC-6Ghz 100W Attenuator

  • RF Attenuator
  • RF Coaxial Attenuator
  • DC-6GHz
  • Attenuation(30dB)
  • N Male To N Female

Click Here to get Datasheet

SKU: VSW-N-MF-30dB-CAT Category: Tags: , , , ,
Description
SPECIFICATION
Type RF Attenuator
Series IN-Series
Attenuation(dB) 30dB
Freq(GHz) DC to 6GHz
Max Power(W) 100W
VSWR 1.25:1
Orientation Straight
Impedance 50Ω
Material Aluminium alloy
Input Connector N-type Male(input)
Output Connector N-type Female(output)
Operating Temperature 55°C to 100°C
