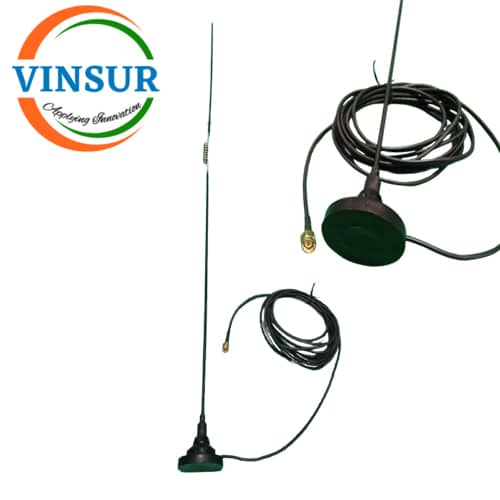

VSW-MGB-443-SMA-ANT — MAGNETIC BASE ANTENNA WITH SMA MALE (443MHZ)
- RF Antenna
- Magnetic Base Antenna
- 443MHz
- SMA Male
Description
| ELECTRICAL SPECIFICATIONS | |
| Frequency | 433MHz |
| Gain | 6dBi |
| Bandwidth | 413-453MHz |
| Input Impedance | 50 Ω |
| Polarization | Vertical |
| Radiation direction | Omnidirectional |
| Power Capacity | 50w |
| VSWR | ≤1.5 |
| MECHANICAL SPECIFICATIONS | |
| Height | 840 ±10mm |
| Sucker Diameter | 46mm |
| Total Weight | 150g |
| Antenna Material | Brass with powered coating |
| Cable Length | 3m |
| Connector | SMA Male Connector |
| Storage Temperature | 40℃~+85℃ |
| Working Temperature | -40℃~+85℃ |
