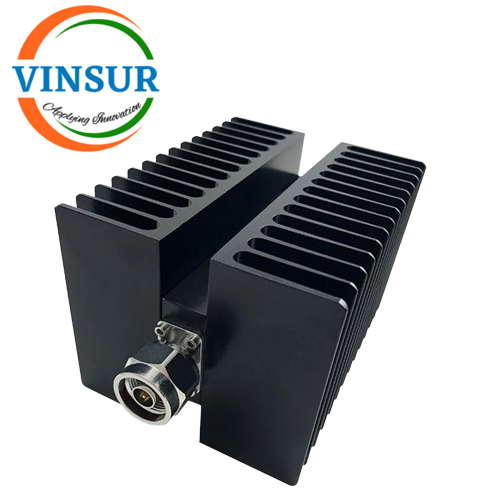

VSW-LPT50-200-3-NF — 200W LOW PIM TERMINATION LOAD (DC-3GHZ, N FEMALE)

  • RF Passive Device
  • RF Termination Load
  • DC-3GHZ
  • N Female or Customized

Click Here to get Datasheet

SKU: VSW-LPT50-200-3-NF Category: Tags: , ,
Description
ELECTRICAL SPECIFICATION
Freq(MHz) DC-3Ghz
VSWR ≤1.30
PIM(dBc) -155dBc@2x43dBm
Power Rating(W) 200W (average power per port)
Impedance 50 ohm
Connector N Female or Customized
Colour Black-plated
Operating Tem(℃) -40°C to +85°C
