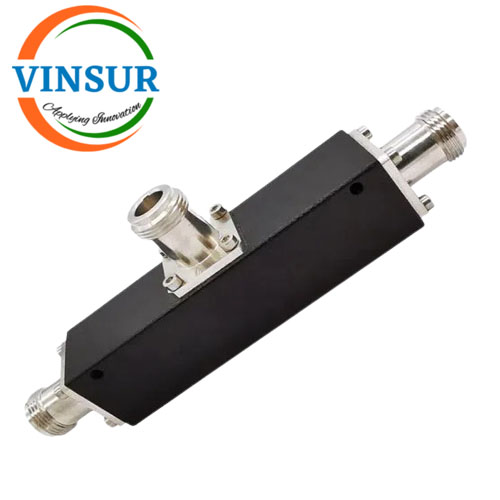

VSW-LPPS-3DB-6G — LOW PIM POWER TAPPER

  • RF Power Tapper
  • N-female
  • 3DB

Click Here to get Datasheet

SKU: VSW-LPPS-3DB-6G Category: Tags: , ,
Description
SPECIFICATION
Freq Range 380-6000MHz
Coupling 3dB
PIM(dBc) ≤-161
VSWR ≥1.40
Impedance 50ohm
Power(W) 300W
Connector N-Female/DIN-Female/4.3-10-Female
Color Black or light Grey
Application Indoor/Outdoor IP65
