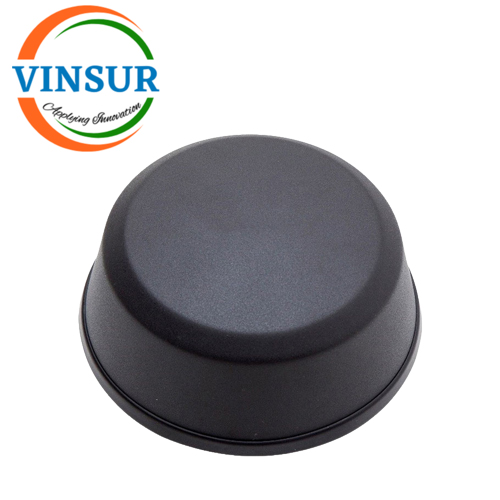

VSW-LPCA-SMA–Low Profile Cellular Puck Antenna(698-960MHz, 1710-2690MHz, 3400-3800MHz)
- RF Antenna
- Low Profile Cellular Puck Antenna
- 698-960MHz, 1710-2690MHz, 3400-3800MHz
- SMA Male
Description
| SPECIFICATION | |
| Frequency | 98-960MHz, 1710-2690MHz, 3400-3800MHz |
| Radio System | Radio System |
| VSWR | 2, 2.5, 2.7, 3 |
| Gain | 4.5dBi, 5dBi, 4.5dBi, 3.5dBi, 7dBi |
| Applications | 2G, 3G, 4G, 5G, NB-IoT |
| Mounting Type | Bracket Mount, Through Hole |
| Antenna Type | Puck |
| Impedance | 50ohms |
| Max Power (Watts) | 10 |
| Number of Bands | 3 |
| Colour | Black |
| Connector | SMA Male |
| Length | 5m |
| Class | IP6K9K |
| Dimensions (D mm x H mm) | 138 x 55 |
| Radom Construction | PC/PBT/Aluminium alloy |
| Operating Temperature | -40°C to +85°C |
| Cable Type | LMR100 Times Microwaves FR |
