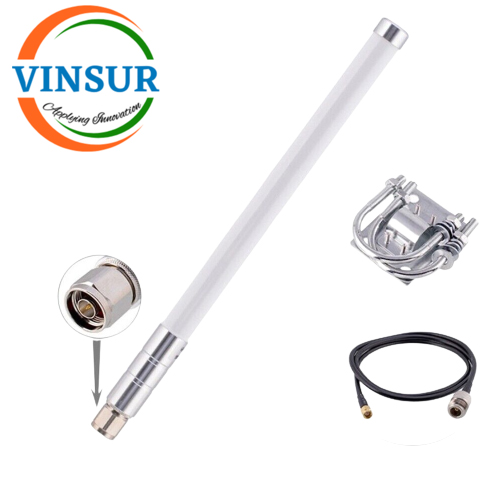

VSW-LBA-9dbi–LORA Band Omni Directional Antenna (9dbi)
- RF Antenna
- LORA Band Antenna
- 865 -868MHz
- 9dBi Gain
Description
| ELECTRICAL SPECIFICATION | |
| Frequency Range | 865 -868MHz |
| Polarization | Vertical |
| Impedance | 50 Ohm |
| Gain | 9dbi |
| Radiation | Omni |
| VSWR | ≤1.5 |
| Maximum input power (W) | 200 |
| MECHANICAL SPECIFICATIONS | |
| Connector | N-Female |
| Connector position | Bottom |
| Length | 1100 MM |
| weight | 1.8 kg |
| Radiating Material | Brass |
| Radom Material | Fiberglass |
| Color | Grey |
| Operating temperature | 50～70℃ |
