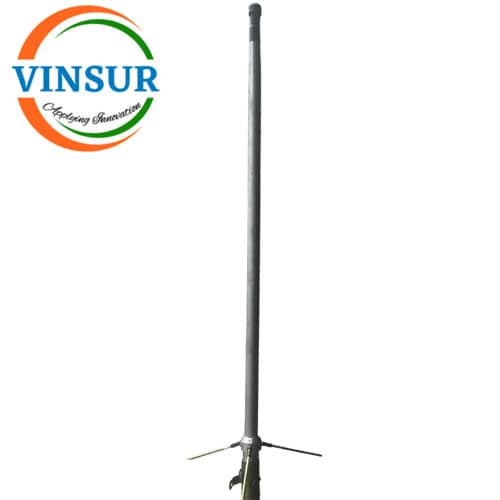

VSW-GP-446-ANT — GROUND PLANE(GP) OMNI DIRECTIONAL ANTENNA 446MHZ
- RF Antenna
- GP Antenna Omni Directional
- 446Mhz
- 4-5dBi Gain
Description
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | 446MHz |
| Gain | 4-5 dBi |
| Bandwidth | 20 MHz |
| Input Impedance | 50 Ohms |
| Radiation Pattern | GP Omni Directional |
| Vertical Beam-width –Half Power Points | 72 Degrees |
| VSWR – Better than | 1:1.5 |
| RF Power Handling Capacity | 200 Watts |
| Input Termination | UHF-Female |
| MECHANICAL SPECIFICATIONS | |
| Materials | Brass |
| Mounting Hardware | Stainless Steel |
| Gross Weight | 1.5 Kgs. |
| Wind Rating | 200 Km/Hr. |
| Overall Length | Up to 0.9 Meter |
| Support Pipe Materials | Powder Coated MS |
| Maximum Mount Pipe Diameter | 52 mm (2 Inches) |
