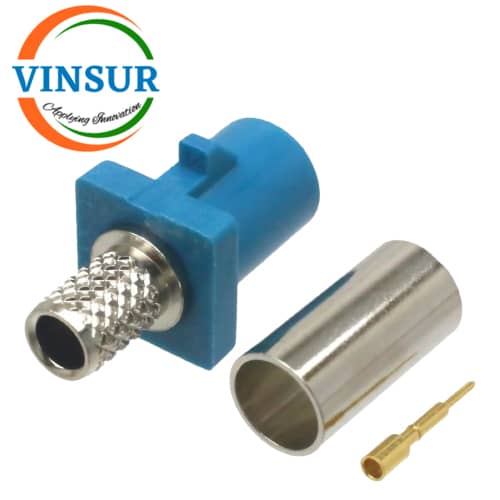

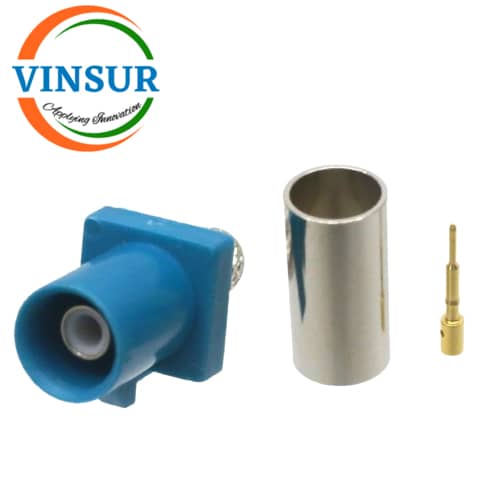

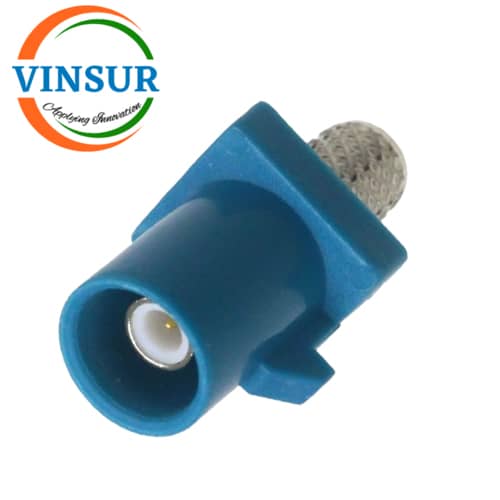

VSW-FAKRA-MS-58Z — RF CONNECTOR – 50 OHMS FAKRA SMB MALE STRAIGHT CRIMP TYPE FOR RG 58 CABLE(Water Blue)
- RF Connectors
- FAKRA Connectors
- Plug (Male)
- Key code Z – Water Blue
- 50Ω
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50Ω |
| Body Finish | Nickel |
| Body Material | Zinc Die cast |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination | Crimp |
| Insulator Material | PTFE |
| Cable Type | RG58 |
| Max Frequency (GHz) | DC to 4GHz |
| VSWR | 1.6 (-13dB) Max |
| Insertion Loss | 0.45 dB |
| Polarity | Standard |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |
| FAKRA Key code | Z – Water Blue |
