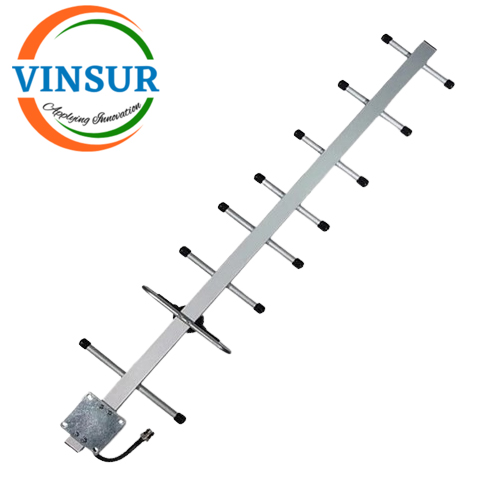

VSW-DYA-6-13dBi–500MHz 6-13dBi Directional Yagi Antennas Series

  • RF Antenna
  • Yagi Beam Antenna
  • 500MHz
  • 6-13dBi

Click Here to get Datasheet

SKU: VSW-DYA-6-13dBi Category: Tags: , ,
Description
SPECIFICATION
Freq.range-Mhz 480～590
Bandwidth-MHz 40
Gain-dBi 11.2
Ver.Beamwidth- 40
Hor.Beamwidth-° 44
F/B Ratio-dB ≥15
VSWR ≤1.5
Impedance-Ω 50
Polarization Vertical
Max.Power-W 100
Connector N Female or Customized
Lighting Protection DC Ground
Elements 7
