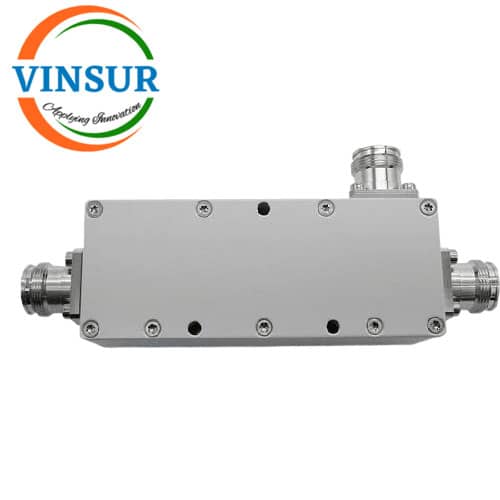

VSW-DC-40-5600-NF — 40DB DIRECTIONAL COUPLER 500-6000MHZ, IP60, N FEMALE

SKU: VSW-DC-40-5600-NF Category: RF Directional Couplers Tags: 500-6000MHz, N-Female, RF Coupler

Description

ELECTRICAL & MECHANICAL SPECIFICATIONS
Coupling	40dB
Freq(MHz)	500-6000MHz
Accuracy(dB)	±5@600-6000MHz
Insertion Loss(dB)	≤0.4
Isolation	≧48
VSWR	≤1.50
PIM Rating	-153dBc@2x43dBm(698-2700MHz)
Power Rating(W)	200W
Impedance	50 ohm
Connector	N Female
Colour	Black
Operating Temperature(℃)	-25°C to +75°C
Application	IP60
