Bi-Directional Coupler VSW-DC-10-4055-NF

Click to enlarge

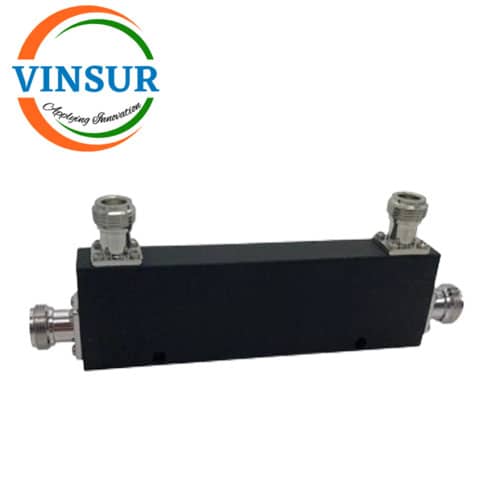

VSW-DC-10-4055-NF — BI-DIRECTIONAL COUPLER

RF Passive Device
BI-DIRECTIONAL COUPLER
500-6000MHz
N Female

Click Here to get Datasheet

SKU: VSW-DC-10-4055-NF Category: RF Directional Couplers Tags: 500-6000MHz, BI-DIRECTIONAL COUPLER, N-Female, RF Coupler

Description
Reviews (0)

Description

SPECIFICATION
Coupling(dB)	10
Accuracy(dB)	±2.0
Insertion Loss(dB)	≤1.2
Isolation(dB)	≥28
Freq(MHz)	400-550MHz
VSWR	≤1.3
Power Rating(W)	200W (average Per Port)
Impedance	50 ohm
Connector	N Female
Colour	Black
Operating Temperature(℃)	-30~+65
Weight(kg)	0.34
