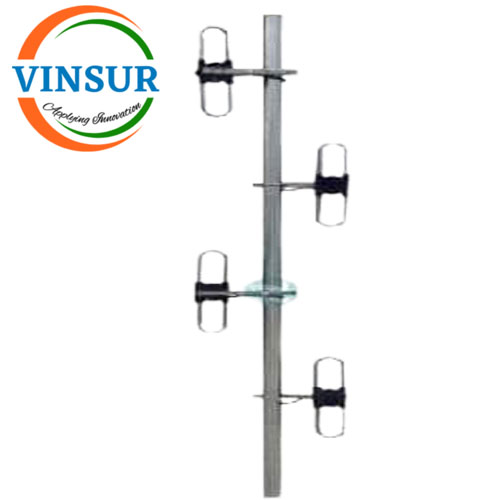

VSW-DA-8TO12DBI–150MHz 8-12dBi 4 Dipole Antennas with JM-DB Bracket
- RF Antenna
- 4 Dipole Antennas
- 150MHz
- 8-12dBi
Description
| SPECIFICATION | |
| Bandwidth-MHz | 8 |
| Freq. Range-MHz | 134 to 173 |
| Gain-dBi | Omni Directional   9
Directional  12 |
| Vertical Beam width° | 13 |
| VSWR | ≤1.5 |
| Impedance-Ω | 50 |
| Polarization | Vertical |
| Max. Power-W | 100 |
| Connector Type |  N Female or Customized |
| Antenna Length-m | 6.7(Depending on Frequency) |
| Weight-Kg | 11 |
| Pole Diameter-mm | φ40 to 50 |
| Wind Velocity-m/s | 30 |
