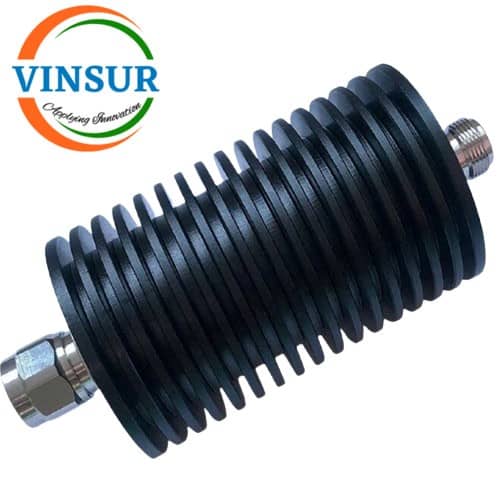

VSW-ATT25-40-8.5-NMF — 25W 40DBI RF ATTENUATOR (DC-8.5GHZ, N MALE TO N FEMALE)

  • RF Attenuator
  • RF Coaxial Attenuator
  • DC-8.5GHZ
  • Attenuation(40dB)
  • N Male To N Female

Click Here to get Datasheet

SKU: VSW-ATT25-40-8.5-NMF Category: Tags: , , , ,
Description
ELECTRICAL & MECHANICAL SPECIFICATIONS
Attenuation(dB) 40
Accuracy(dB) ±1.5
Freq(MHz) DC-8.5GHz
VSWR ≤1.25
Power Rating(W) 25W@25℃ (average)
Impedance 50 ohm
Connector N Male to N Female
Colour Black
Operating Tem(℃) -55°C to +125°C
Dimension(mm) See Drawing
