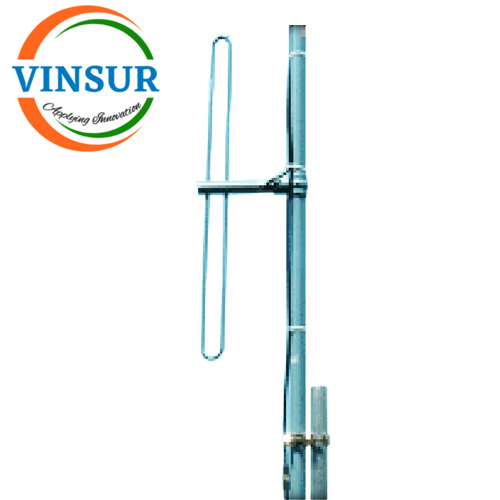

VSW-AN-SDOM-118137-M01–STACKED FOLDED DIPOLE OMNI DIRECTIONAL ANTENNA 118 to 137 MHz
- RF Antenna
- Stacked Folded Dipole Omni Directional Antenna
- 3dBi
- N Female
Description
| ELECTRICAL SPECIFICATION | |
| Frequency Range | 118 – 137 MHz |
| Gain | 3 dBi |
| Input Impedance | 50 Ω |
| VSWR (Max.) | < 1.5:1 |
| Polarization | Vertical |
| Bandwidth | 10 MHz |
| Radiation Pattern | Omni |
| Max. Power | 250 W |
| Connector | N Female |
| Dimension | Ø186 x 90 mm |
| Lightning Protection | Direct Ground |
| MECHANICAL SPECIFICATION | |
| Materials | Aluminum |
| Mounting H/w | Stainless Steel |
| Wind Rating | 200 Km/h |
| Overall Length | 3 M |
| Mounting Pipe Diameter | 51mm (Max.) |
| Gross Weight | > 8 Kgs |
