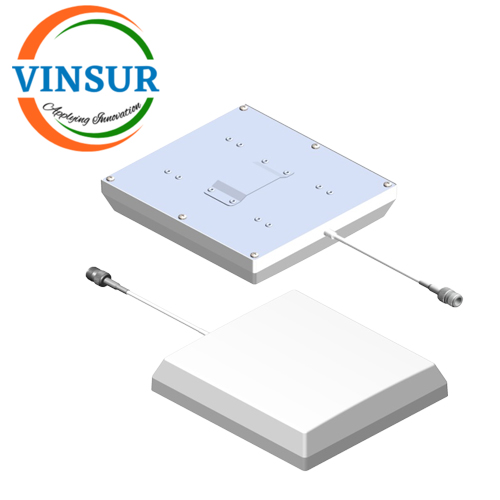

VSW-AN-PADA-M01–INDOOR PATCH PANEL ANTENNA(698–2700 MHz)
- RF Antenna
- Indoor directional Panel Antenna
- 698–2700 MHz
- 6/ 7 dBi Gain
Description
| SPECIFICATION | |
| Frequency Range | 698 – 960 MHz-1710-2700 MHz |
| Gain | 6/ 7 dBi |
| Input Impedance | 50Ohms |
| VSWR (Max.) | ≤ 1.5 |
| Polarization | Vertical |
| Front to Back Ratio | ≥10dB / ≥15dB |
| Horizontal Beam Width | 100° / 65° |
| Vertical Beam Width | 85° / 60° |
| Max. Power | 50 W |
| Connector | N Female or Customized |
| Dimension | 200 x 216 x 45 mm |
| Weight | 400 grams. |
| Mounting | Wall Mount |
| Operating Temperature | -30° to 60°C |
| Humidity | 5 – 95% |
