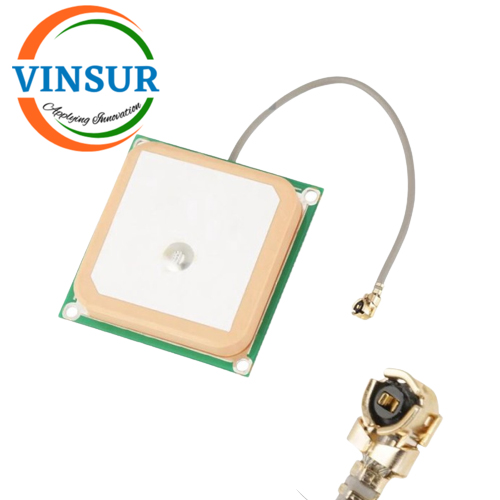

VSW-AN-GP-AT-155-1575 –18dBi High Gain RHCP Ceramic GPS Active Antenna
- RF Antenna
- GPS Antenna
- 1575.42 ± 1.023 MHz
- Gain 18dBi
Description
| ELECTRICAL SPECIFICATION | |
| Frequency Range | 1575.42 ± 1.023 MHz |
| Band Width | 10 MHz |
| Gain | 18 ± 3 dB |
| VSWR (Max.) | ≤ 2.0 |
| Impedance | 50 Ω |
| Polarization | RHCP |
| Noise Figure | ≤ 2.0 dB |
| DC Current | 3.0±1mA (at 3.0V) |
| MECHANICAL PARAMETERS | |
| Material | Dielectric Ceramics |
| PCB | FR4 |
| Shielding | Tinplate |
| RF Cable | Ø0.81mm±0.1mm |
| RF Connector | U.FL-1 |
| Size | 15 x 15 x 5 mm |
| Wire Length | 60 to 100mm (L1) |
| MECHANICAL PARAMETERS | |
| Operating Temperature | -40 to +85°C |
| Storage Temperature | -40 to +85°C |
| Vibration | Sine sweep 1g(0-p)
10~55~10Hz each axis |
