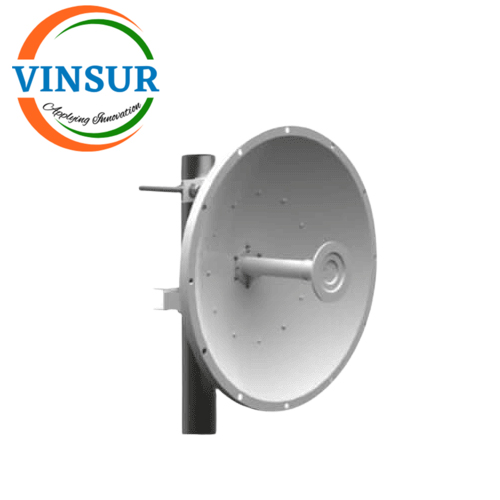

VSW-AN-DSH-29-590620 — 5900 – 6200MHz Dish Antenna (Dual Polarized)For Wireless Communications
- RF Antenna
- Dish Antenna
- 5900 – 6200 MHz
- 2x N Female Connector
Description
| ELECTRICAL SPECIFICATION | |
| Frequency Range | 5900-6200 MHz |
| Gain | 2 x 29 dBi |
| VSWR (Max.) | ≤ 1.5 |
| Input Impedance | 50 Ω |
| Polarization | Dual X-Poln (±45) |
| Port to Port Isolation | >30 dB |
| H Plane Beam Width | 6°± 0.5° |
| E Plane Beam Width | 6°± 0.5° |
| Maximum Power Input | 100 W |
| Front to Back Ratio | ≥ 32 dB |
| Connector / Termination | 2 x N (Female) |
| Lighting Protection | DC Ground |
