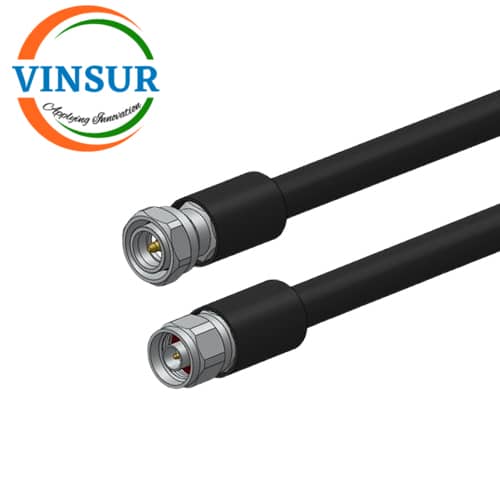

VSW-61H10110W-2M — 50 OHMS , 4.3-10 MALE, STRAIGHT TO N MALE, STRAIGHT FOR 1-2 INCH SUPER FLEX CABLE ASSEMBLY 2M
- RF Cable Assembly
- 1-2 inch Super flex Cable Assembly
- N type to 4.3-10
- N male to 4.3-10 male
Description
| SPECIFICATION | |
| RF Series 1 | 4.3-10 |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | N |
| Gender 2 | Plug (Male) |
| Orientation 2 (body) | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Frequency | DC to 6GHz |
| Impedance | 50 Ohms |
| VSWR | ≤1.2 |
| Temp (Max Degrees Celsius) | +85 |
| Temp (Min Degrees Celsius) | -40 |
| CABLE SPECIFICATION | |
| Cable Diameter | 13.30 mm |
| Cable Type | 1/2 Super flex cable |
| Length | 2meter |
| Frequency Range | 8GHz |
