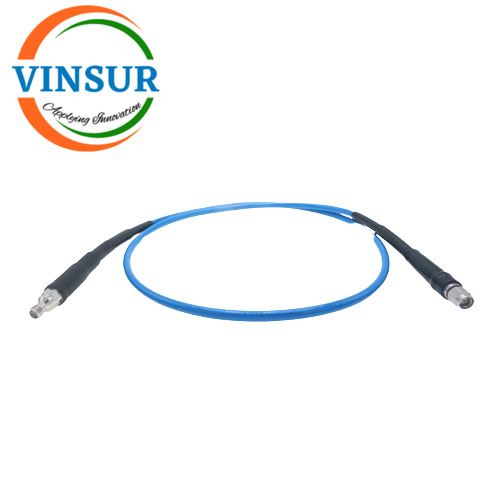

VSW-61415N425NOQ-1D SMA MALE TO SMA FEMALE 1METER TESTING CABLE ASSEMBLY FOR RG402 T-FLEX

SKU: VSW-61415N425NOQ-1D Category: SMA to SMA Cable Assembly Tags: Rf Testing Cable Assembly, SMA to SMA Cable Assemblies

Description

SPECIFICATION
RF Series 1	SMA
Gender	Plug(Male)
Orientation1 (body)	Straight
RF Series 2	SMA
Gender 2	Jack(Female)
Orientation 2 (body)	Straight
Body Finish	Nickel
Body Material	Stainless Steel
Contact Finish	Gold
Contact Material	Beryllium Copper
Frequency	DC to 18Ghz
Impedance	50 Ohms
Cable	Ultra low loss phase & amplitude stable
Cable Type	RG402 T-flex
VSWR	≤ 1.25:1
Length	1Meter
Cycling time	500
